Lightweight Engine Mount


Read reviews

Lightweight Engine Mount Image
Lightweight Engine Mount Image Lightweight Engine Mount Image Lightweight Engine Mount Image Lightweight Engine Mount Image

£219.95 EX VAT

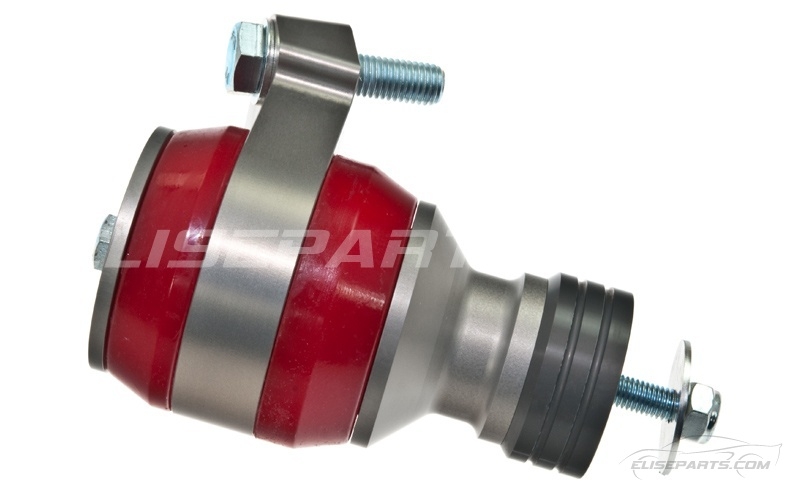

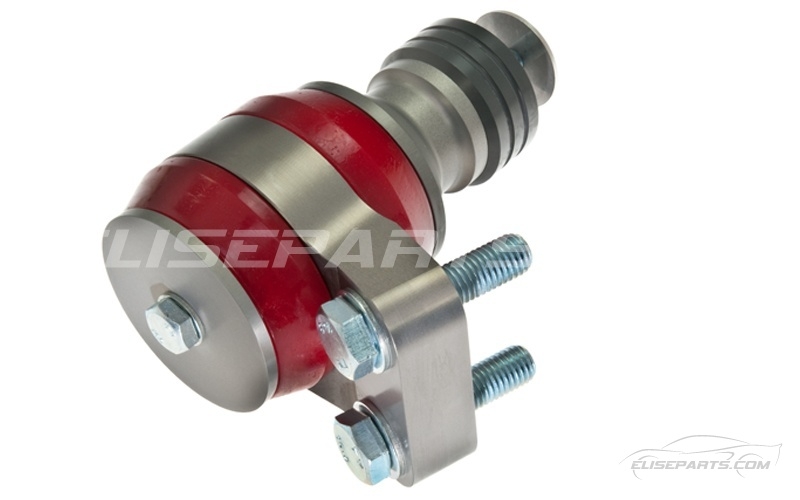

Beautifully crafted, all aluminium, lightweight engine mount.

Not only does this mount save almost 2 KG compared to the standard parts it replaces it also alleviates the pendulum effect that the engine suffers from when tight cornering.

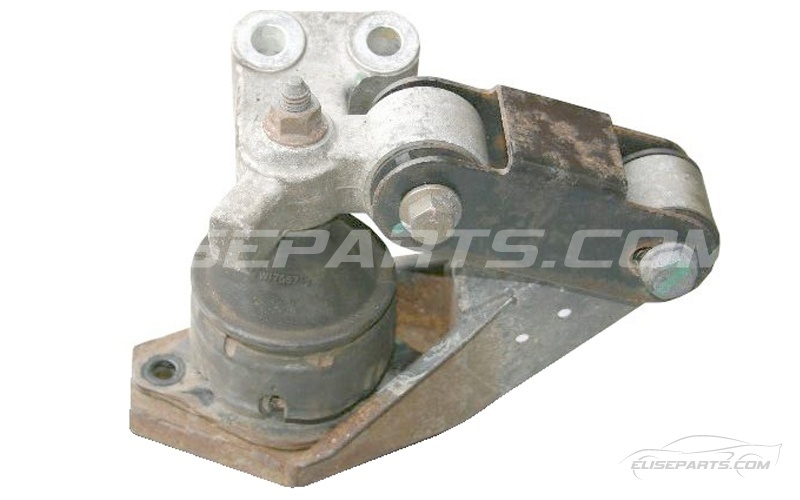

The original mount and brackets are made from plated mild steel which corrodes badly and eventually will fail at its weakest point similar to the one in the picture.

The original equipment mount is oil filled rubber which is also prone to leaking and splitting.

The EP Tuning Lightweight Mount is made up from three pieces and two specially designed Polyurethane bushes made to a specific Shore hardnesss that minimises vibration yet keeps the stiffness required to stop the engine from rocking.

All the aluminium parts are hard anodised and then PTFE coated for corrosion resistance.

The bolts, shim washers and nyloc nuts are all 10.9 Grade High Tensile Steel and Zinc coated.

This mount is an upgraded part and stiffer than the original so it will create more low RPM vibration especially if your engine is out of balance or you have other stiff mounts installed.

This fits the following models:

  • S1 K SERIES ELISE
  • S2 K SERIES ELISE
  • S1 EXIGE & MOTORSPORT
  • LOTUS 340R
