K Series High Flow Induction System
Be the first to write a review

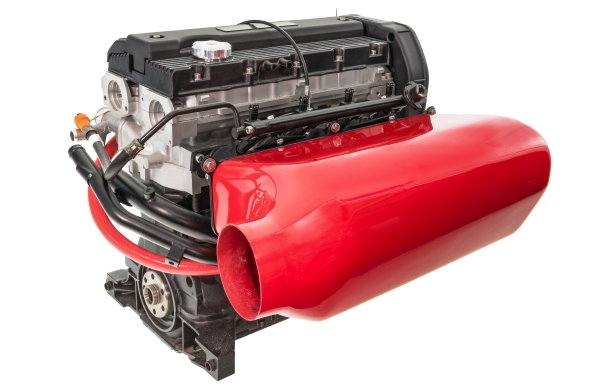

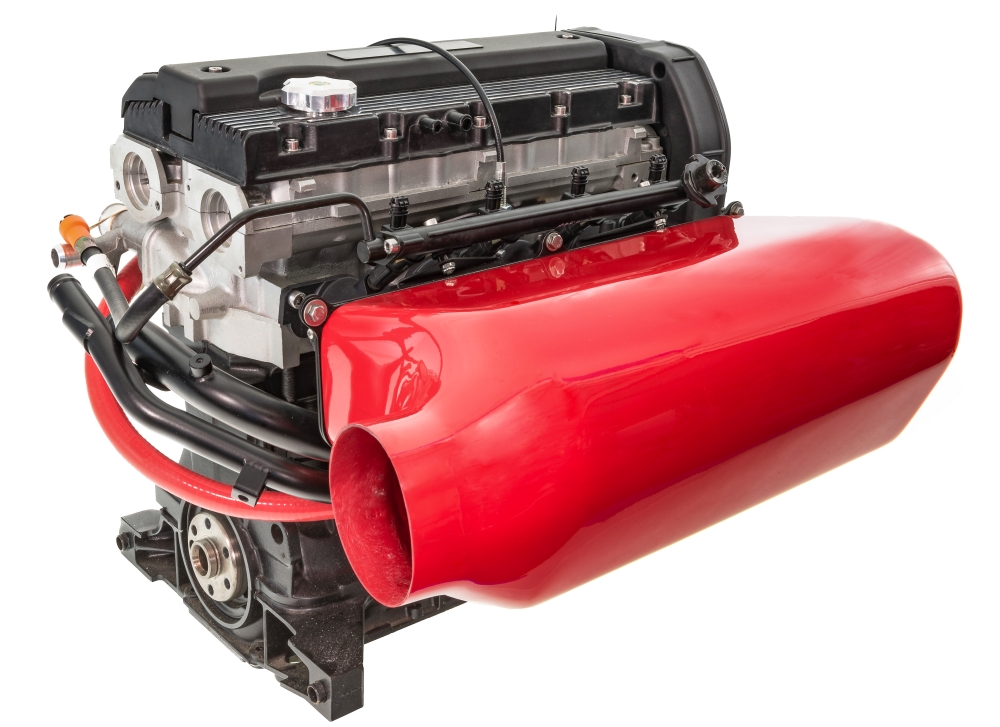

K Series High Flow Induction System
Brand new GF molds for fitment of either Jenvey or Eliseparts Direct To Head Throttle bodies
Width 410mm x Height x 165mm x Length 250mm ( Protrution from Throttle Body)
The Hi Flow Elise Kit comprises of:

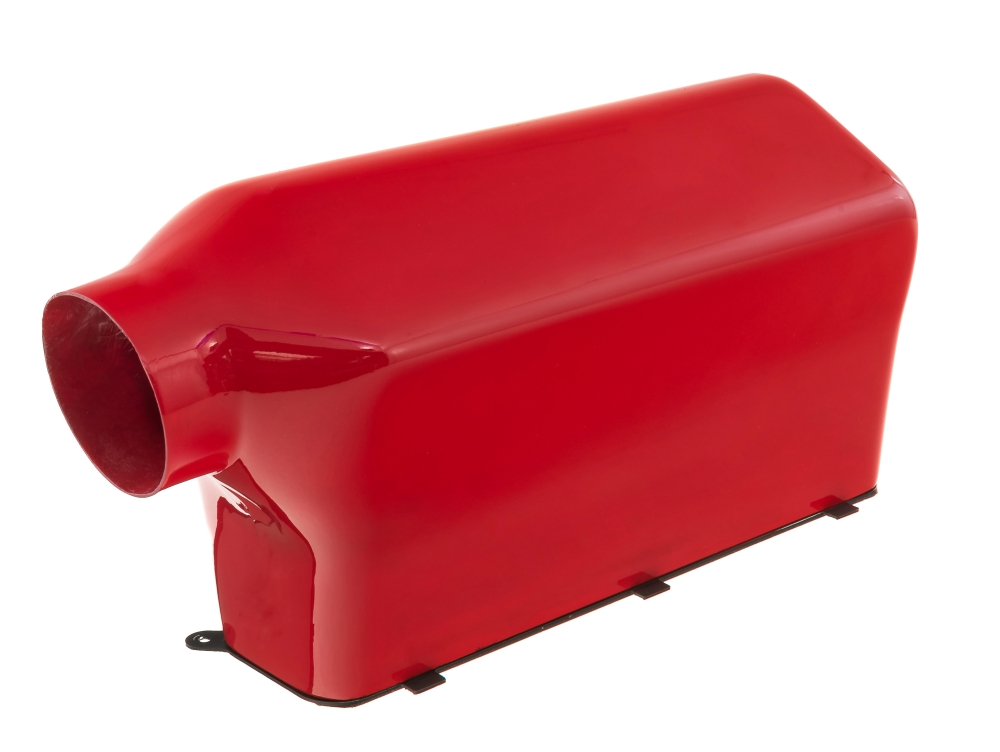

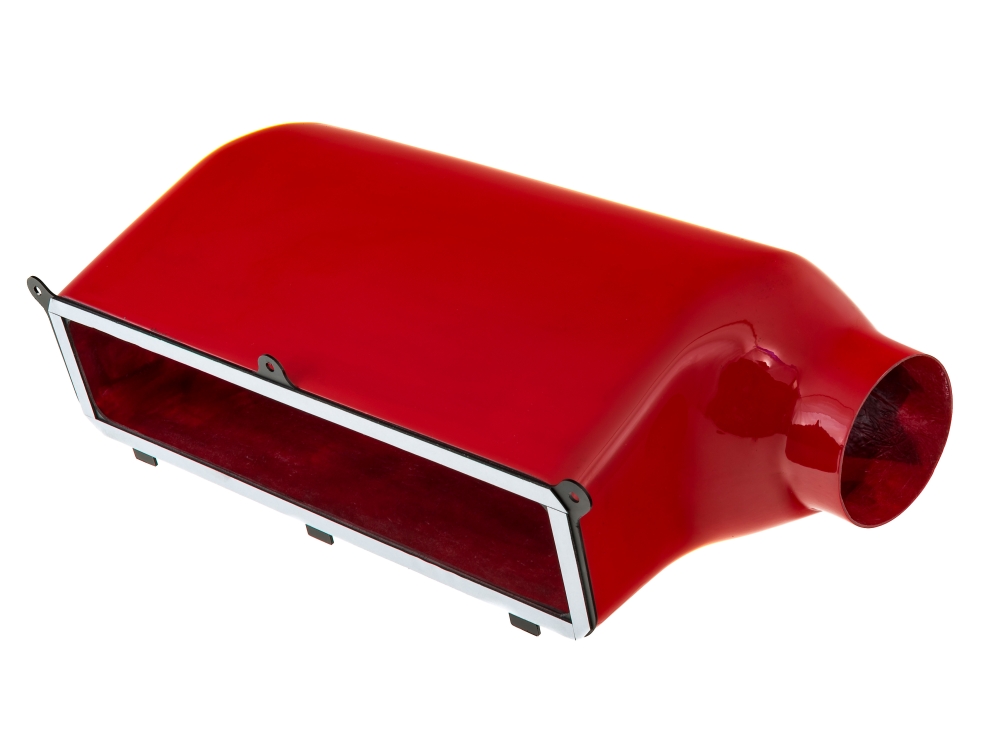

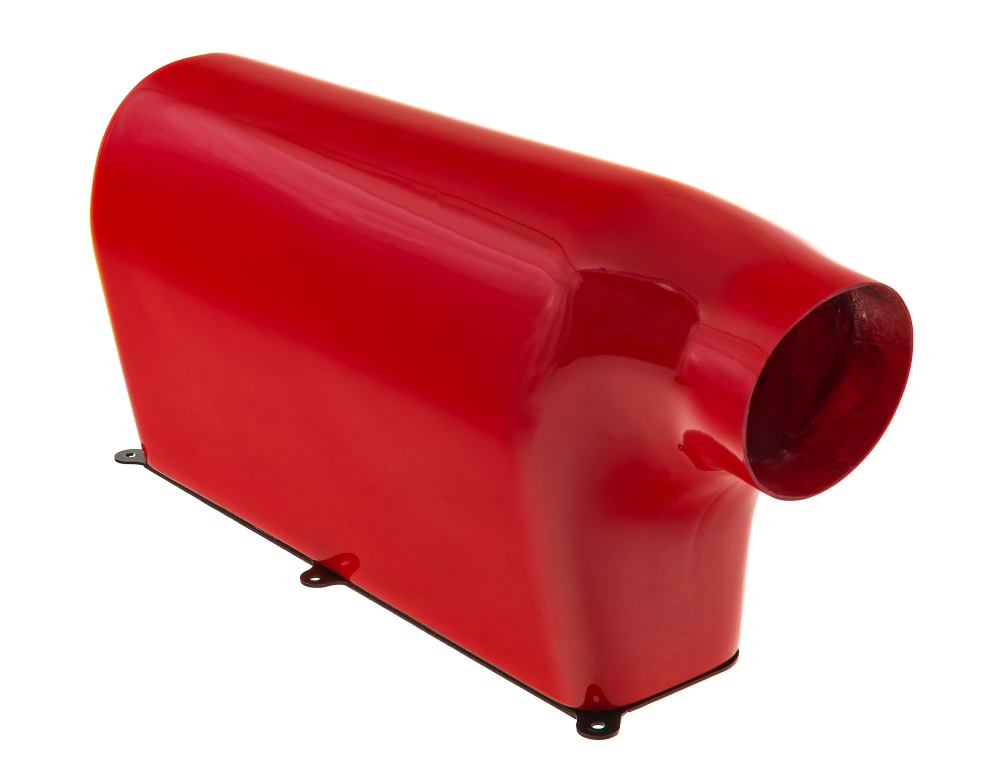

• Airbox (red or black)

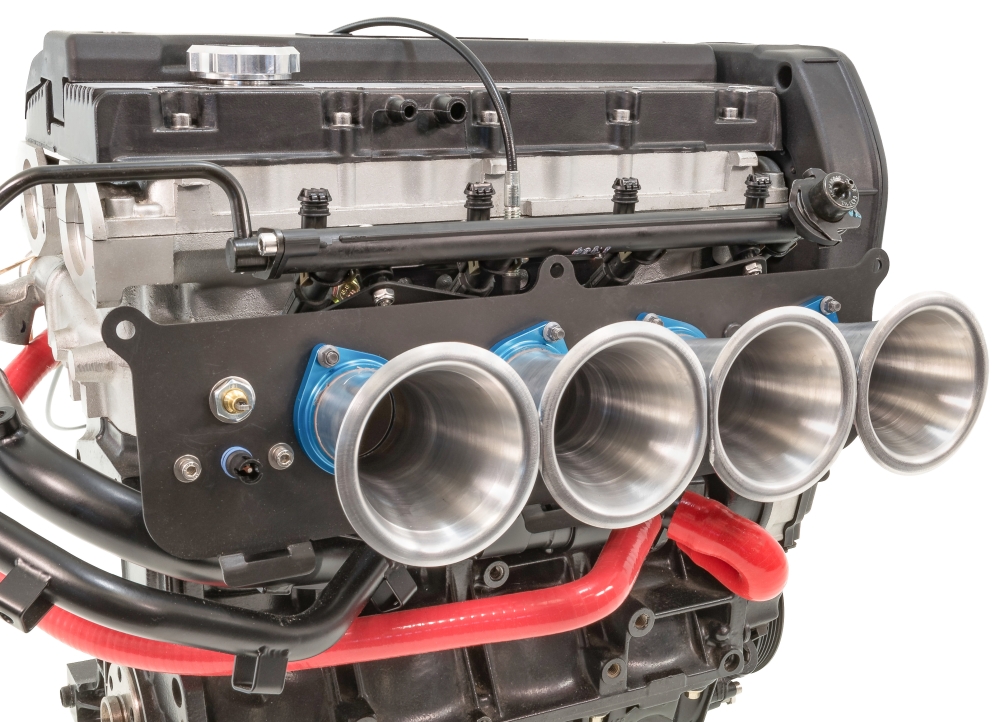

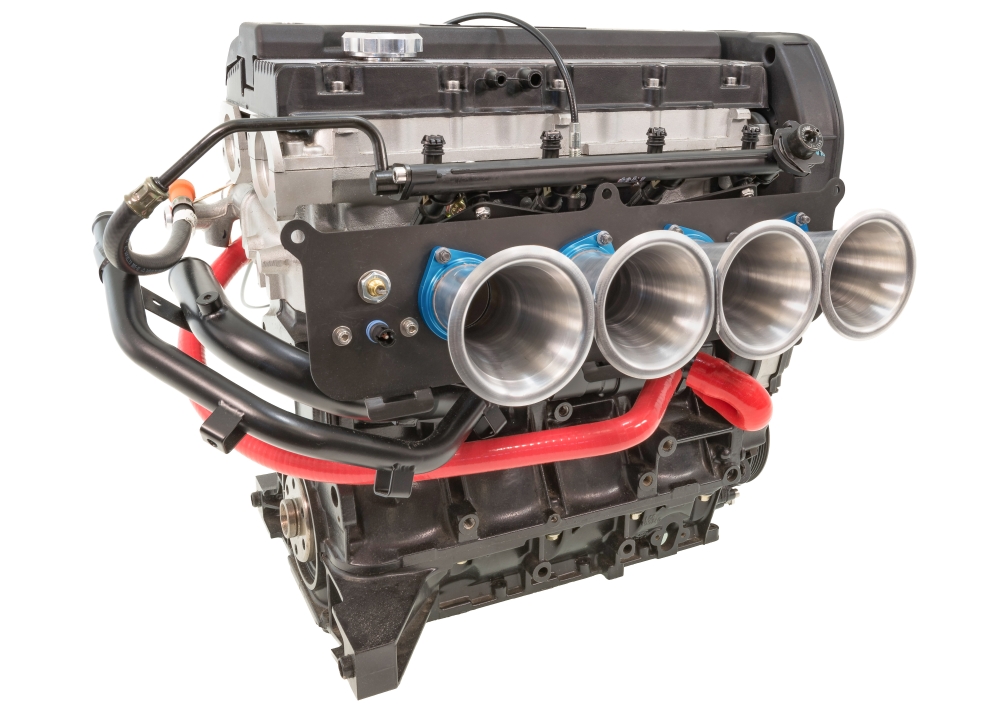

• 4 x 90 mm long x 42 mm bore trumpets or alternatively 4 x 90 mm long x 45 mm bore (see options)
• Aluminium backplate plus fixings for above, and includes fuel rail mounting for standard K Series fuel rail.
• 500 mm length of 100 mm diameter flexible air duct
• 2 x 100 mm hose clips
• Throttle cable bracket to take standard Elise cable
• All studs, nuts, bolts, washers etc included to enable an easy fitment
• The air temperature sensor fits into the backplate
• There are also two alternative positions on the backplate for a crankcase breather pipe connection
The airbox and backplate weighs less than 1 kg
N.B. Air Filter Unit not supplied.
The boot / luggage area does require modification to install this kit
This fits the following models:
- S1 K SERIES ELISE
- S2 K SERIES ELISE
- S1 EXIGE & MOTORSPORT
- LOTUS 340R
